W2500 Plastic Pipes Hydraulic Butt Welding Machine
- The machine is for weldings of PE – PP – PVDF pipes and fittings up to 32 Bar. Welding sizes are 1800 – 2000 – 2200 – 2400 – 2500 mm
- With the shortest setup time, it provides simple and fast welding operations according to international standards ISO 12176 – 1
- With its lightweight nature provides easy handling
- Maximum working pressure is 200 Bar
- The working environmental temperature is -10 C° ~+40 C°
Main Body
Trimmer
Heater
Control Unit
The main body supports and centers the plastic pipes with two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps for and backward and supply the necessary movement for the welding process.

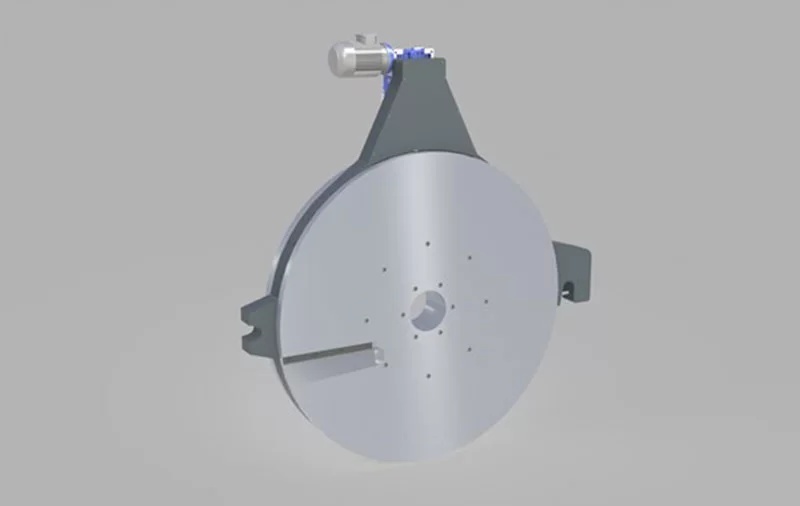

The trimmer is the tool that cleans and smoothes both ends of the pipes before the heating process with its blades on both sides.
W2500 Butt Welding Machine trimmer unit ensures clean and parallel pipe faces.

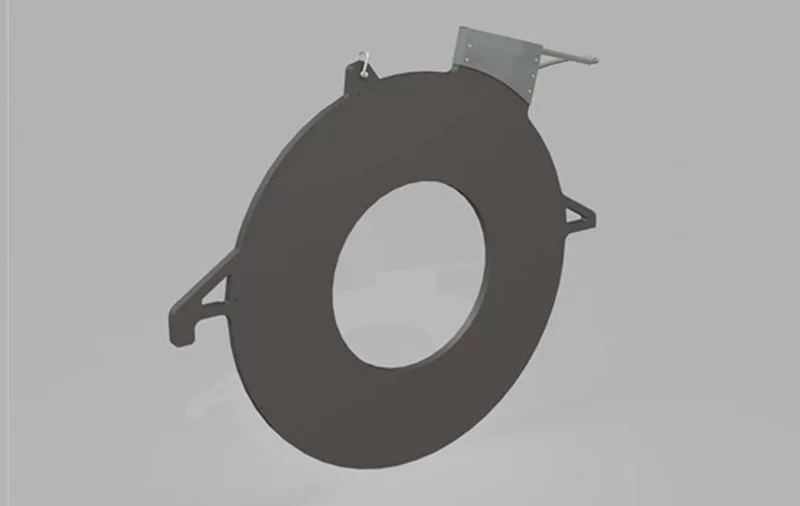

The pipe ends will be heated by this heater before the welding process.
The settings of the heater will be done by the thermostat on the control unit.
W2500 Butt welding machine PTFE- coated heating element ensures the uniform surface temperature.

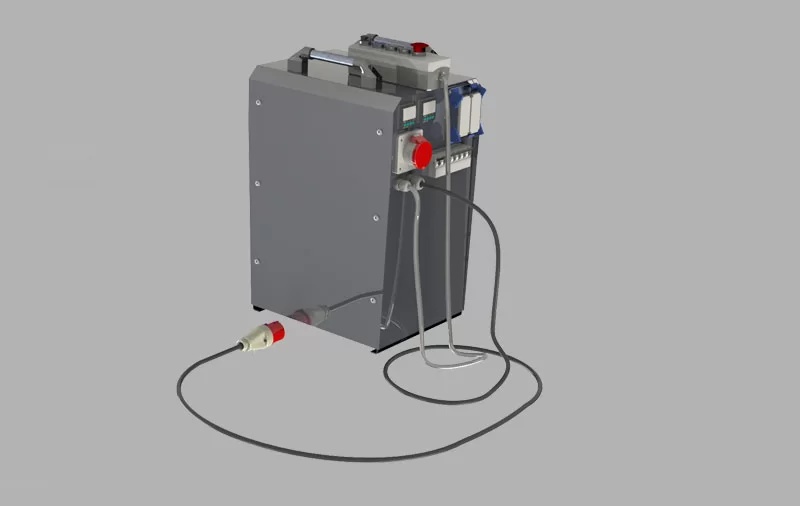

The necessary electricity will be transferred to the heater and trimmer by means of this unit and to the main machine by hydraulic pressure.
It will be controlled by the manual buttons. On the manual control panel, there are four buttons and a key.
The clamps are controlled by the buttons and the trimmer by the key.
Technical Specifications
Content
Packaging Details
| Technical Specifications | |
| Welding Range | Ø 2000 mm – Ø 2500 mm
(Ø1800 mm, Ø2000 mm, Ø2200 mm,Ø2400mm,Ø2500 mm) |
| Pipe Types to Weld | PE – PP – PVDF |
| Pipe Max. Pressure | PN10 |
| Heater Electric Power | 380 V – 80 kW |
| Trimmer Electric Power | 380 V – 11 kW |
| Power of Hydraulic Unit | 380 V – 5,5 kW |
| Electric System | Triple Phase |
| Total Electricity Consumption | 96,5 kW |
| Operating Pressure | 270 Bar |
| Required Generator Power | 120 kVA |
| Working Temperature | (-10 C° ~ + 40 C°) |
| Hydraulic Oil | Hydraulic 46 / 6 lt |
| Content | |
| User Manual | 1 ad/ pcs |
| Main Body | 1 ad/ pcs |
| Trimmer | 1 ad/ pcs |
| Heater | 1 ad/ pcs |
| Protective Casing | 1 ad/ pcs |
| Stuffer | 32 ad/ pcs |
| Tool Bag | 1 ad / pcs |
| Packaging Details | |
| Type of Package | Open-Stretch |
| Number of Packages | 3 paket / pack |
| Dimensions | 2,50 x 3,50 x 3,50
1,70 x 3,40 x 3,30 |
| Total Volume | 49,69 m3 |
| Total Net Weight | 9.500 kg |
| Total Gross Weight | 9.600 kg |
