MHW160
Plastic Pipes Manual Hydraulic Butt Welding Machine
- Machine is for weldings of PE – PP – PVDF pipes and fittings up to 32 Bar. Welding sizes are 40 – 50 – 63 – 75 – 90 – 110 – 125 – 140 – 160mm
- With the shortest setup time, it provides simple and fast welding operations according to international standards ISO 12176 – 1
- With its lightweight nature provides easy handling
- Maximum working pressure is 150 Bar
- The working environmental temperature is -10 C° ~+40 C°
Main Body
Trimmer
Heater
Housing Unit
The main body supports and centers the plastic pipes with two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps for and backward and supply the necessary movement for the welding process.

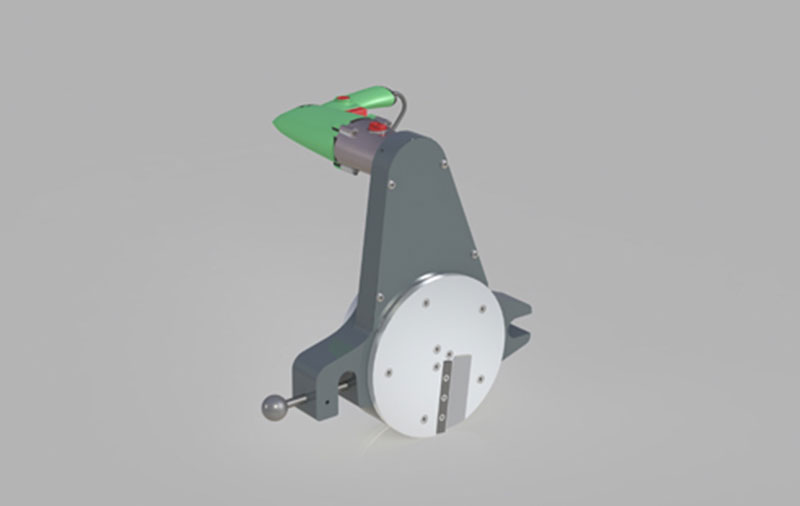

The trimmer is the tool that cleans and smoothes both ends of the pipes before the heating process with its blades on both sides.
MHW160 Butt Welding Machine trimmer unit ensures clean and parallel pipe faces

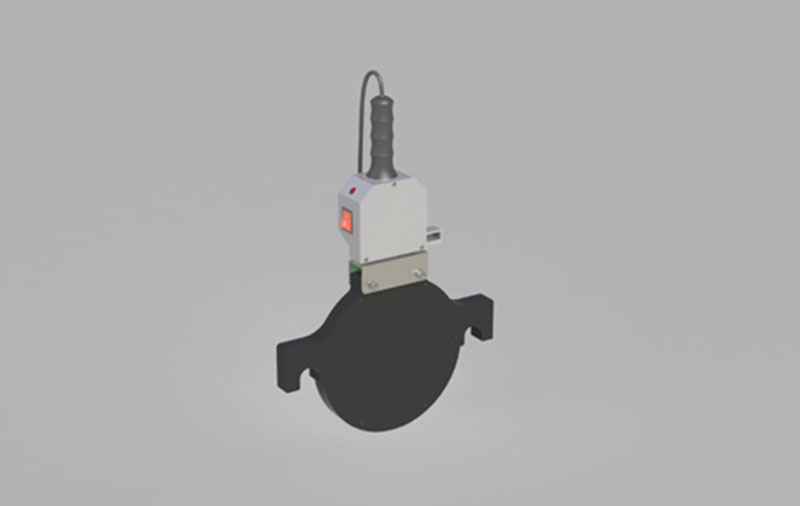

The pipe ends will be heated by this heater before the welding process.
The settings of the heater will be done by the thermostat on the plates.
MHW160 Butt Welding Machine PTFE- coated heating element ensures the uniform surface temperature.
Housing and support box prevents the heat loss of the heater and protects the trimmer from the exterior effects in a manner supporting the heater (against impacts, water, etc.)
Technical Specifications
Content
Packaging Details
| Welding Range | Ø 40 mm – Ø 160 mm
(Ø40 mm, Ø50 mm, Ø63 mm, Ø75 mm, Ø90 mm, Ø110 mm, Ø125 mm, Ø140 mm, Ø160 mm) |
| Pipe Types to Weld | PE – PP – PVDF |
| Pipe Max. Pressure | PN32 |
| Heater Electric Power | 220 V – 1,5 kW |
| Trimmer Electric Power | 220 V – 0,81 kW |
| Electric System | Monofaze / Single Phase |
| Total Electricity Consumption | 3,00 kW |
| Operating Pressure | 150 Bar |
| Required Generator Power | 4 kVA |
| Working Temperature | (-10 C° ~ + 40 C°) |
| Hydraulic Oil | Hydraulic 46 / 1 lt |
| User Manual | 1 ad/ pcs |
| Main Body | 1 ad/ pcs |
| Trimmer | 1 ad/ pcs |
| Heater | 1 ad/ pcs |
| Protective Casing | 1 ad/ pcs |
| Stuffer | 32 ad/ pcs |
| Tool Bag | 1 ad / pcs |
| Type of Package | Wooden Case |
| Number of Packages | 1 paket / pack |
| Dimensions | 0,968 x 0,748 x 0,798 |
| Total Volume | 0,33 m3 |
| Total Net Weight | 62 kg |
| Total Gross Weight | 86 kg |
